Phycoremediation: Nature's Solution for Cleaner Waters

Phycoremediation is a highly advanced technology that involves the remediation of contaminants in a water body using micro and macroalgae. It removes pathogens and toxic materials, xenobiotics, chemicals, and heavy metals are known to be detoxified, transformed, accumulated, or volatilized by algal metabolism.

It offers multiple advantages over conventional methods of remediation because of its effectiveness, efficiency, and eco-friendly nature. It is a nature-based, carbon-negative, and chemical-free treatment method for the restoration and rejuvenation of waterbodies polluted by domestic, agricultural, and even industrial discharges within the drains and waterbody.

Join the journey of sustainable water management

Harnessing algae to restore ecosystems

Phycoremediation, the use of algae to treat and remove pollutants from natural water bodies, can play a significant role in rejuvenating these ecosystems. This process utilizes the natural capabilities of algae to absorb nutrients, degrade organic pollutants, and remove heavy metals and toxins, ultimately improving the water quality and restoring ecological balance. Algae uptake excess nutrients such as nitrogen and phosphorus, which are often responsible for eutrophication and algal blooms in water bodies. Their cell walls can adsorb heavy metals from the water, reducing their concentrations. Algae produce oxygen through photosynthesis, enhancing the oxygen levels in the water and supporting aerobic life forms. Microalgae produce antimicrobial compounds that can reduce the levels of pathogenic microorganisms in the water.

The rejuvenation of Civil Line Pond (Lal Diggi-Lagoon 1) in the Holy City of Ayodhya through phycoremediation serves as an excellent case study to illustrate the practical application and benefits of using microalgae for natural water bodies restoration. Trinity International utilized the potential of Microalgae and diatoms for the removal of pollutants and a significant reduction was observed in the level of BOD, COD, and TDS. In addition to this, substantial improvement in Dissolved Oxygen was observed during the treatment process. Further, the bad odor due accumulation of sludge also disappeared. Utilization of harvested biomass for producing biofuels, fertilizers, or other valuable products, adding economic benefits to the environmental restoration. This technology not only provides environmental benefits but also offers economic and community advantages.

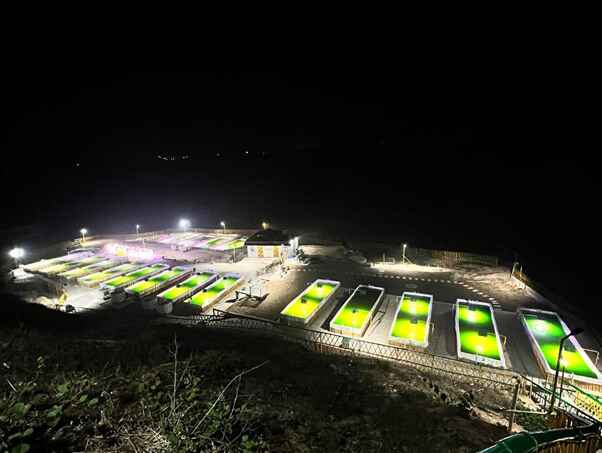

The Lukha River in Meghalaya was extremely toxic, heavily contaminated with metals and non-metals, and devoid of aquatic life. The high levels of aluminum, iron, and sulfur in the water imparted a bright blue color to the river, highlighting its severe pollution. Trinity was awarded the pilot project to demonstrate the removal of these toxic substances. The cleaning process began with the selection of appropriate microalgae strains capable of targeting specific pollutants. These strains were cultured in a controlled environment, either in a photobioreactor or open pond system, at a designated site. The contaminated water from the river was then introduced into the culture system, where the microalgae absorbed and removed the pollutants. Through phycoremediation, the microalgae absorbed essential nutrients like nitrogen and phosphorus from the wastewater, using them to grow while simultaneously removing heavy metals, organic compounds, and pathogens. The process also helped reduce the acidity of the wastewater by removing excess carbon dioxide. Trinity's efforts were successful, restoring the river's ecological balance and bringing back aquatic life. The Honourable Forest and Environment Minister of Meghalaya, Mr. James Sangma, confirmed the project's success and expressed support for expanding this technology across the state.

the vision of cleaner drains can be achieved using microalgal and native microbial strains. This scientifically designed nature-based treatment will help the local authorities to achieve all the goals in the most economical, holistic, natural, safe and effective way by creating self-sustainable bio-drains. Additionally, this will also promote water reuse/recyclability and ecosystem enrichment. In a limited time, this scientifically layered approach can turn around the prolonged harmful impacts of detrimental practices polluting the city drains and banks of the rivers, in the most natural way.

The Mausam drain in Nasik, Maharashtra, was severely polluted, with high levels of B.O.D., Total Coliform, and E. Coli, rendering it unfit for use. The river emitted a foul odor due to excessive pollution. However, within three weeks, significant improvements were observed in all water quality parameters, including pH, B.O.D., C.O.D., NH3-N, E. Coli, and Total Coliform. The water became suitable for use by local villagers, benefiting nearly 500,000 daily users. The initial pH levels were high, and pollutants such as B.O.D. and C.O.D. were substantially above safe levels. Post-intervention, pH stabilized close to neutral, and contaminants reduced drastically, indicating successful rehabilitation.

Leachate is the liquid that drains or ‘leaches’ from a landfill and dumpsites. It can contain various pollutants such as organic matter (biodegradable and non-biodegradable), ammonia nitrogen, heavy metals (e.g., lead, mercury, cadmium), pesticides, xenobiotics, and pathogens. Microalgae-based leachate treatment leverages the natural capabilities of microalgae to absorb and transform pollutants present in landfill leachate. This approach is gaining attention due to its sustainability and cost-effectiveness. Microalgae, through their growth and adsorption of heavy metals, significantly reduce pollutants in leachate. They also produce enzymes that degrade complex organic compounds into simpler, less harmful substances. Microalgae photosynthesis increases the dissolved oxygen in the leachate, which helps aerobic bacteria further degrade organic pollutants and alters pH to more neutral levels.

Phycoremediation is a cost-effective and eco-friendly technology because it utilizes natural sunlight and CO2, reducing the need for expensive chemicals and energy. The harvested algal biomass can be used for bioenergy, biofuel production, fertilizers, or other bioproducts, adding economic value.

Oil sludge is a common waste primarily produced during petroleum production, refining, storage, and transportation, including mud from drilling, waste oil, emulsified solids, and sediment in storage tanks. It is a complex mixture of oil/water emulsion, solid particles, organic compounds, and heavy metals that requires refinement to remove its recalcitrant residue. Refining oil sludge, containing heavy, toxic, carcinogenic, and mutagenic components (benzene, phenol, polycyclic aromatic hydrocarbons, resins, asphaltenes, and heavy metals), has been designated a hazardous waste under the Resource Conservation and Recovery Act (RCRA). The petroleum industry is very concerned about waste management since improper handling can negatively impact the environment and public health. Physicochemical methods like pyrolysis, incineration, solvent extraction, centrifugation, and ultrasonic irradiation are not cost-effective and eco-friendly due to high energy consumption, high cost, and secondary pollution generated.

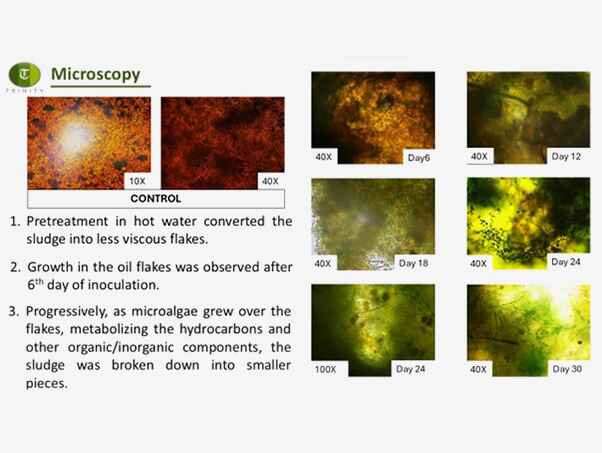

Phycoremediation for oil sludge involves the use of algae to treat and remove pollutants from oil-contaminated environments. Microalgae can produce enzymes that break down complex hydrocarbons into simpler (fewer toxic compounds) and metabolize hydrocarbons as a carbon source, reducing the overall concentration of these pollutants. It is a cost-effective and sustainable method because it utilizes natural processes, reducing the need for expensive chemicals and energy-intensive methods and microalgae can be cultured and harvested continuously, providing a long-term remediation solution. The harvested microalgal biomass can be used for bioenergy and biofuel production.

Benefitting society the natural way

01.

Wastewater Management for Neb Sarai Pond in South Delhi

Neb Sarai Pond in South Delhi has been selected for wastewater management using this eco-friendly and sustainable technology in collaboration with DRIIV and Ministry of Environment Forest and Climate Change (MOEFCC). Validation of the water quality after treatment will be provided by DRIIV’s member institute WTC, ICAR-IARI, New Delhi. Upon successful completion, the pilot will be scaled up in collaboration with MoEFCC, MoPNG, and Oil India.

02.

Enhancing Water Quality and Sewage Management in Sanjay Van and Smriti Van

Out of the five interconnected water bodies in Sanjay Van, the first four will be rejuvenated with Delhi Jal Board (DJB) through DRIIV. Additional funding support from the Amrut 2.0 scheme is being facilitated by DJB for this purpose. This project also includes augmenting the capacity of the existing ETP at Smriti Van to handle and sustainably manage the increasing load of sewage. The Detailed Project Report (DPR) is being submitted to DJB.

03.

Oil sludge management: Pilot at Numaligarh Refinery, Assam

The sustainable management of oil sludge is taking a significant leap forward with DRIIV through a pilot-scale treatment project at Numaligarh Refinery Limited (NRL) in Assam, in collaboration with OIL India Limited (OIL). With phycoremediation, the critical issue of oil sludge will be managed in an eco-friendly manner at the refinery. Lab tests on samples from the NRL refinery have yielded successful results, culminating in the submission of a comprehensive feasibility report. With these promising findings, DRIIV is set to execute transition of this innovation to an on-site pilot phase shortly, marking a pivotal step towards a greener and more sustainable approach to managing industrial waste.
